Borg cube, 2366

Borg Cube

The introduction of the Borg in the second season episode of Star Trek: The Next Generation's episode "Q Who", has proven to be a milestone in the Star Trek franchise, as they represented an adversary unlike anything seen before and rarely after. The uncompromising, implacable and daunting nature of the race warranted a formidable ship to match that nature, and they have received it in the form of the Borg cube. The fascination with the race and their vessel led, apart from its appearances in The Next Generation, to repeat performances in Star Trek: First Contact, featuring an upgraded cube design, the pilot episode of Star Trek: Deep Space Nine, and in the television series Star Trek: Voyager, where the Borg and their vessel made several appearances.

Original Borg cube modelEdit

The distinctive design of the original Borg cube, has spawned a far more sophisticated version at a later point in time, as well as derivative design in the form of the Borg tactical cube for Voyager. Starting out as an array of physical studio models, advances in computer technology resulted in the addition into the fold of digital ones as well.


Borg Cube concept model

Borg cube concept model

The original concept for the Borg cube was conceived by Writer/Producer Maurice Hurley and designed by Production Designer Richard James. The original studio model was built from "the simple embellishments that Rick Sternbach and Richard James had created based on the description of the cubical ship given in the script." (Star Trek: The Next Generation Companion; Star Trek Encyclopedia) The final draft of the script for "Q Who" read, "The shape of the ship is more apparent. It's box like, with none of the aerodynamic qualities associated with most spaceships including the Enterprise. This is a case of form following function."

A rudimentary foam core study model, measuring 9 inches squared, was later offered as Lot 1305 in the Profiles in History Hollywood Auction 40 of 12 June 2010. Valued at US$800-$1,200, it sold for US$900, ending up in the collection of noted Star Trek memorabilia collector Adam Schneider. [1]

Original physical studio modelEdit

Regular studio model vendor Gregory Jein, Inc. had been requested to bid on the project, but that company's capacity was at the time taken up by Associates and Ferren for the production of Star Trek V: The Final Frontier. The bid to build the Borg ship, along with the melting section, Enterprise force perspective saucer model and the Enterprise Core Sample, was therefore awarded to Kim Bailey of Starlight Effects, who was contracted by Producer Peter Lauritson to do the build for "Q-Who", and authorized by Earl Lestz (the then head of Paramount Studios).

Borg cube original studio model Borg cube model
The model at Image G
Borg cube model with Moore and Curry
The studio model, two views
VFX supervisors Moore and Curry with the original model

At Starlight Effects, the model was essentially scratch-built layer by layer from custom shapes created by union model makers to make up the inner surface, then was covered with acid etch brass (that was hand drawn and then etched) to create the intricate surface detail applied in multiple layers and lit from within. Each layer was applied as a separate element and built by a crew of twelve model makers led by Gene Rizzardi and Jim McGeachy. The model mount or inner support structure was also a custom built aluminum six point mounting system to hold the model that incorporated a custom model mount rig for Image G, where the model was filmed. The final weight of the Borg cube came to a astounding sixty pounds once completed. As for the final colors, they were chosen by Bailey, who hired model maker Roger Sides of Science Fiction Modelmaking Associates to do the finish detail scaled weathering. The three-foot model was used in "Q Who", both episodes of "The Best of Both Worlds", and "Emissary". Due to its shape, no more than three sides of the cube could be shown at any given time on screen, yet the model is fully detailed on 5 sides with the sixth being left open (requested by Visual Effects Supervisor Dan Curry), allowing the handlers easy access to the innards of the model for adjusting lighting and the like. An added advantage for the handlers of the model was the simpler mounting of the model for its shots.

While recognized as an imaginative design, Visual Effects Supervisor Rob Legato found the model hard to shoot, "That, for me, is quite ugly and difficult to light. You're hampered by the fact that when you put the ship in a particular lighting condition, it looks terrible. You then have to redesign and rechoreograph the shot to put it in its best light." (Cinefantastique, Vol 22, No.2, p. 33) All the footage of the original physical Borg cube model was shot at Image G.

As of 2013, the original Borg cube studio model, virtually unmodified and escaping the 40 Years of Star Trek: The Collection and It's A Wrap! auctions, is still in the possession of CBS Consumer Products and has been on tour displays such as Star Trek World Tour, Star Trek: The Adventure, and Star Trek The Exhibition as late as 2012. [2]

Other physical studio modelsEdit

Borg Cube partial model

The model Curry saved

For "Q Who", an enlarged section of a side was built to show the self-regenerating capacities of the cube, and was in fact also constructed by Kim Bailey. Out of frame a high temperature heatgun, operated by Bailey and photographed by David Stipes, was applied to the partial model which made the wax elements melt and the styrene curl inward as it melted. The footage shot was subsequently inserted in reverse in the finalized footage in post-production. After shooting the model was nearly discarded but was saved by Dan Curry and is currently retained by him as part of his own personal collection. [3]. Bailey constructed a special plexiglass case to protect the model and presented it to Curry.[1]

A smaller two-foot break-away model was built by Gary Hutzel and Dennis Hoerter for the finale of "The Best of Both Worlds, Part II", essentially following the same building methodology as its bigger sister. Hutzel recounted, "The Borg explosion in that shot was, of course, very important. It was a pivotal moment in the show. And it had to be really big. So, we had all set out realizing we needed a spectacular explosion. Dick Brownfield was our effects person on the show, at that time. And he'd pulled out the stops, brought out everything. But as usual, we spent all the money on the pyrotechnics and there was no money left to build the ship. The ship had to be built. There was no money. I mean, I had to build the ship. So, the ship that was used for the pyrotechnics was only about two feet square, as I recall. So Dennis and I ended up sitting on a table and taking basically model-kit parts, stripping all the parts off, taking the little frames – the little plastic frames that they come on – and gluing them to the side of this box [...] and then spray-painting it, looking at it and sticking more stuff on, spray-painting it some more until, finally, it looked like the Borg ship. It was a spectacular explosion, and beautifully executed. We got it in the first take." (TNG Season 4 DVD-special feature, "New Life and New Civilizations: The Best of Both Worlds")

Annika's toy modelEdit

Anika Hansen playing with a model of a Borg Cube

Annika with Borg cube

On one occasion a Borg cube appeared that did not represent a real in-universe vessel, but rather a model. It was the model Annika Hansen played with in Voyager's season 5 Borg-heavy episode "Dark Frontier". Berated by her father, Magnus Hansen, who admonished his daughter that it was not a toy, young Annika nevertheless used it as such.

The model used in the episode actually was a commercially-available toy, the 1994 Borg cube from Playmates Toys, No.6158, which was (loosely) modeled after the television model and which as merchandise featured engines, tractor beam, laser cannon sounds, and a light-up interior. It was the one and only time a Borg cube was represented on-screen physically by a model not stemming from a production asset, but rather from a commercial product.

First Contact Borg cube modelEdit

Borg cube design variant

Delgado's obelisk variant

Originally, when it came to producing Star Trek: First Contact, an alternative notion was considered in the first draft script for First Contact, of Borg craft that were comprised of multiple cubes as well as the single sphere. [4] ILM Associate Visual Effects Supervisor George Murphy recalled how the notion of a squadron of Borg ships able to amass into a single vessel was envisioned, "It was like a Borg latticework that worked as one and moved as one. It would have made for a really nice visual – but it diminished the Borg villains to suggest they needed this many ships to beat Starfleet." (Cinefex, No. 69, p. 106) Eventually, the numerous Borg cubes became one ship of that form because, "We [...] decided that a single cube was more in keeping with the way the Borg had been established before," as Writer Ronald D. Moore recalled. (AOL chat, 1997)

However, the producers deemed the original studio model too crude and not detailed enough to hold up to big screen requirements and had both John Eaves and, briefly, Ricardo F. Delgado submit design variations.

Delgado's obelisk proposal, inspired by ancient Egyptian architecture, had openings through which the Borg sphere could be clearly viewed, as well as an opening at the top, which, according to Delgado, was purely decorative, although he envisioned the sphere being set in the top. (Star Trek: The Magazine Volume 1, Issue 23, pp. 53-54) Delgado himself noted, "I felt the obelisk was a natural geometric progression away from the cube, while the obvious reference to Egyptology would also make the audience wonder if this was the Borg's first visit to Earth." (Star Trek: The Next Generation Sketchbook: The Movies) However, his concept was eventually scrapped after it was discovered that the shape had an inherent lack of visual impact and excitement, particularly when shown from low angles.

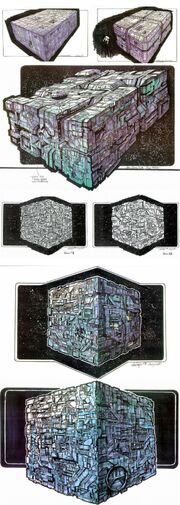

Borg cube second variant design process

Eaves' design process

Eaves, the designing process quickly gravitating towards him, started out with experimenting with a tetragonal shape. "I did three or four passes in the rectangular shape." (Star Trek: The Next Generation Sketchbook: The Movies, p. 208) "The first one I did was very, very smooth; that was when it was still very large. It was this reflective block and it had all these inset passages you could fly through or other things could fly out of. They said, "OK, that's kind of cool. Let's carry that a little bit further, but not so smooth; we need that Borg detail. (...) I knew that Goodson was going to work on the model - they were going to use brass etch, and there's really no way you can draw it - so what I did was just a guideline for the kind of shapes. I try to do that with all the drawings I do; I leave a lot of the spaces open so the modeler can be part of the creative process." Adhering to the producer's wishes Eaves second pass suggested more paneling and large recessed areas, but, "They liked the idea of the detailing on it; it had ribbon-shaped canyons. They liked the feel of that, but they felt that the pattern was too mathematical." Eaves third pass therefore, was an effort to break up the regularity. "That was also rectangular, but it's got a lot of really deep valleys and its got a little round escape sphere on the surface. That one they really liked; they said 'Let's go with that.'", Eaves continued.

Upon consideration, however, the producers eventually decided to go along with the established cube design (though the tetragonal shape was later revisited with the Borg probe) and Eaves went on to rework the cube, ""The first one was really overly detailed. That's where I started incorporating 45-degree lines all throughout it. They liked that; it was very intricate, but it was too busy, so they had me go with version two. That was the same breakup; I started putting a heavier panel on top of it and incorporating the escape hatch. That was more the direction they were wanting, so Zimmerman had me do a color pass on it. That one has the hatch on the left-handed side; for the very final pass they had me put the hatch on on the right side and they went back to a little finer detail. It was almost going back in a full circle back to the first sketch. It had a little bit of heavier panel but more of the fine-scale stuff." During this process the size of the cube was in flux ranging from 3,000 feet to 1,500 feet, the size eventually decided upon, which Eaves himself considered too small. He tried to remedy that by downsizing the detail on his design as to create a sense of scale. At first the circular escape hatch was an prominent feature on the cube, "As the model went on, they decided to keep the door hidden, so it wouldn't be seen during the attack and wouldn't be revealed until the very last moment. On all the drawings you can see where the port is; that established where on the cube that hatch is, but, in fact you never saw it except for that one where it opens, so really it could be anywhere." (Star Trek: The Magazine Volume 1, Issue 23, pp. 53-58)

Physical studio modelsEdit

Borg cube studio model light box worked upon by Barbara Affonso Borg cube studio model finetuned by Jon Foreman
Affonso working on the lightbox of the studio model
Borg cube model extreme clos-up of second model
Close-up of the model, showing its heavy use of paper-clips
Foreman putting on the finishing details on the model

Eaves' final design, a more detailed and compact looking design, resulting in less transparency at the edges, was approved in March 1996 and sent over to the model shop at Industrial Light & Magic. Model makers John Goodson (supervising), Barbara Affonso, Giovanni Donovan, and Jon Foreman constructed the thirty-inch model out of layers of photo-etched brass etch, suggested by Bill George with modeled styrene pieces placed sporadically throughout. The great intricacy of the brass etch gave the model a distinctly more detailed and varying look from the television model, though it was actually smaller. "There were layers and layers of detail, five inches deep, which helped convey the complexity and scale of this ship," Alex Jaeger observed. (Cinefex, issue 69, p. 109) Apart from the brass etch, ample use was made of lowly paper-clips to further embellish the cube's surface with detail. (Star Trek: The Next Generation Sketchbook: The Movies, pp. 216-218) Internally lit by neon lighting, the light pattern was broken up by a patterned eighteen-inch green lightbox to suggest different compartments and light sources within the model. Also built into the model was a five-inch-long motion-controlled circular passageway for the Borg sphere's escape. In post-production, the sphere was composited into the footage of the cube since the Borg sphere model was actually almost as large as the cube model.

Effects Supervisor John Knoll remarked on ILM's approach to showcase the model, "The idea of having this big ship, three miles square, that was nothing but a junky-looking cube, was very different than what had previously been done on a Star Trek film. I wanted it to look bigger and badder, so wherever possible, we were looking up at it. We shot it fairly close with relatively wide lenses, and tried to make it break frame in many shots, as if it's too big too photograph completely. It's hard to do a shot of an office building where you see the whole thing. I also turned the cube 45 degrees so that one edge of it would come toward the camera like the prow of a ship." (American Cinematographer, December 1996, p. 69) Knoll's insistence on extreme close-ups of the model, was the main reason why the studio model had to be as detailed as possible.

Borg Cube movie studio model at auction

Movie studio model at auction

For the close-up battle damaged scenes, a sixty-inch side was specifically constructed to showcase battle damage, with especially designed model sections, that could be removed and replaced, with a burn then airbrushed around the "damaged" areas. John Goodson recollected, "We had about six pieces on it. They were held in with tiny... [...] little machine screws, really tiny, like what you'd use in your glasses, and these sections would unscrew and come off. And so you'd have these gaping rips in the thing, and then we would take an airbrush with a little bit of gray paint and do kind of a blast mark on it, and you had instant damage. And to repair it, a can of black spray paint, blast the hole [with the paint], do a little bit of touch-up with some color, screw the piece back in, and it was fully restored. It took minutes to change." (Star Trek: First Contact (Blu-ray)-special feature, "Industrial Light & Magic – The Next Generation")

For the destruction scene of the cube, no less than ten thirty-inch break-away models were blown up, supervised by Geoff Heron to depict the scene, the scene being shot by Martin Rosenberg from underneath with the high-speed camera protected by a piece of plywood that covered the matte box. "They blew up several black cubes packed with debris", stated Alex Jaeger, "and we were able to match up those blast elements to our model photography." As part of the compositing, explosions on the Borg cube's hull were colored green, to match the ship's interior and exterior color motif. (Cinefex, issue 69, p. 109) Rosenberg added, "At the end of each take, the matte box was maybe 4" deep in plastic! We knew when the shot was finished when we couldn't see anything!" (American Cinematographer, December 1996, p. 70)

Used only once, though some footage taken for the movie was later used in Star Trek: Voyager's third season episode,"Unity", the model, known as Lot 105, part of the 40 Years of Star Trek: The Collection auction, estimated at US$1,000-$1,500, was eventually sold on 5 October 2006 with a winning bid of US$80,000 ($96,000 including buyer's premium), in the process becoming the most undervalued object of the auction. The model was acquired by Microsoft's co-founder Paul Allen for his Science Fiction Museum and Hall of Fame in Seattle, now known as the Museum of Pop Culture (MoPop). [5] It went on public display in the Star Trek: Exploring New Worlds exhibition at MoPop from 21 May 2016 to 28 May 2018 [6], which subsequently became a touring exhibition. [7] [8] [9]

CGI modelEdit

Borg cube CGI second variant

Foundation's CGI version

As USS Voyager approached Borg space in season 3 of the series, it was clear they would run into their ships sooner or later as they did in "Unity". Since the visual effects of the series was already in the midst of the transition from traditional miniature photography to CGI, the decision was quickly made to make the Borg vessels CGI models. [10](X) The model was built at Foundation Imaging by Emile Edwin Smith, who based it on both the Next Generation and First Contact physical models, elaborating, "Well, when I built the new cube for Voyager I based everything off image maps and then modeled around them. To make it real simple I had an underlying cube that was mapped with an image. I then took the main image that I had created into modeller and started building on it. Basically it was large areas of chunkiness raised above the inner cube with many of the detailed areas of the map modeled on these areas. I also interconnected the pieces with tubes and added edge pieces to make it look more dimensional and 3d on the edges." [11] Making its debut in "Unity", this model was used in every subsequent episode the cube made an appearance in, though some stock footage taken from the First Contact model was also used, as Smith has stated, "In the episode Unity, I built the Borg ship, and we animated 90% of all the visual effects, the other 10% were stock model shots. Of course this varies with each episode, some we do no work on, but that is typical..." [12]

Borg cube attacking Copernicus Station

CGI model on side assignment in Borg Invasion 4D

Long after Voyager had wrapped, the CGI model made one more prominent, official live-action appearance in the 2004 Borg Invasion 4D-ride at the Star Trek: The Experience-attraction, seen attacking, and abducting people from Copernicus Station. Responsible for this was Smith's former Foundation supervisor, Adam "Mojo" Lebowitz, who was now employed at Threshold Digital Research Labs in a similar function, along with another former Foundation colleague Lee Stringer, and responsible for the visual effects in the movie for ride. As former Foundation Imaging Visual Effects Supervisor, Lebowitz had access to the digital database of previously used CGI live-action production starship models, and several of these were – mostly as scenic backdrops in the opening and closing scenes – featured in the film, the most noticeable ones being obviously those of the Borg cube and USS Voyager, the latter likewise prominently featured in the movie. The cube incidentally, fared little better than its First Contact or Voyager episode counterparts, being destroyed by Voyager at the end of the movie.

Borg tactical cube modelEdit

Borg tactical cube

Class 4 Borg tactical cube

In Voyager's season 6 two-part episode "Unimatrix Zero", an alternate design of the Borg cube appeared, what was designated as the "Borg tactical cube" (or in the Borg's own terminology a "Class 4 tactical vessel"), not really a new design – or as its designer Doug Drexler exclaimed, "It's a cube!" – but rather a very much upgraded design, endowed with novelties such as extensive hull armor that covered a large portion of the exterior hull of the ship, with the vessel's central plexus being protected by multi-regenerative security fields.

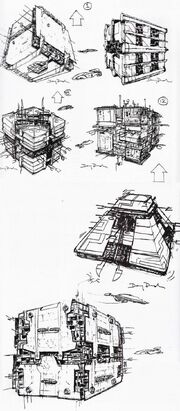

Borg tactical cube design sketches by Doug Drexler

Drexler's design process for the tactical cube

The Borg tactical cube was designed by Doug Drexler, at the time employed at Foundation Imaging, on the request of the producers who wanted some ideas pitched for a new Borg cube design. When approached to do the re-design, Drexler recalled, "I'm the only guy on the Voyager team at Foundation who is a sketcher. If Rick Sternbach is too busy, or the art department has left on hiatus, Rob Bonchune or Mojo will ask me to bash out ideas. This was the case when I worked in the DS9 art department as well. If John Eaves was busy I would pinch-hit. I enjoy designing, but I think that I wouldn't want to be the lead illustrator. It's a tough job. This way I get to dabble. When Rob told me that they wanted a new type of Borg cube I was kind of amused. After all, a cube is a cube, right?" (Star Trek: The Magazine Volume 1, Issue 18, p. 92) It was indeed Foundation's VFX supervisor Bonchune, the producers turned to in making the request, who in turn reverted the request to Drexler, as the latter further clarified, "It was during my tenure at Foundation Imaging as part of the Voyager VFX team. I remember Rob Bonchune came to me with an assignment. Our producers wanted some design ideas for a new Borg Cube...a battle-cube. "Rob! It's a cube!" I laughed. "That's like being asked to restyle a basketball!" As much as we enjoy having a laugh at the expense of our masters, it does make you stop and think. I figured that I couldn't go too wrong, you know what I mean? (...) "Doug," said Rob. "You're the only guy here who wields a pencil, and the bosses are looking for a few sketches, so have at it!"" [13](X) Still, the script did not give Drexler much help, as the new vessel was simply described in the script as a "battle cube". "I like to give the producers a bunch of sketched concepts to look at rather than work one idea into an illustrative masterpiece. It's a misdirection of energy. If the idea doesn't sell as a sketch, the concept probably isn't strong enough.", Drexler stated. (Star Trek: The Magazine Volume 1, Issue 18, p. 92)

Confronted with the simple "battle cube" description, Drexler toyed with several other configurations, having stated, "Ya gotta love that! I tried adding a lot of sharp pointy masts, spears, and antennas. As a joke I even drew one up that was a pyramid. You know, the UPN symbol... a square, a ball, and a triangle. So far, Borg ship design has been a cube and a ball. The pyramid would have completed the thing with tongue planted firmly in cheek. I knew the powers-that-be wanted a cube, but I couldn't resist." (Star Trek: The Magazine Volume 1, Issue 18, p. 92), at a later point in time adding, "My one joke was the Borg pyramid. I mean think about it. First we had the Borg cube, then the sphere from First Contact, and now the pyramid! It's the UPN logo!" [14](X)

Still, eventually returning to the classical cube-shape, Drexler incorporated in his design the notion that the Borg performed tactical updates after their recent beating by Species 8472, or as he has put it at a later date, "What do you do with a cube? You can armor it. The Borg had just had their collective asses handed to them by Species 8472, so I'd design a flak jacket for a Borg cube. Personally I felt adding anything to the cube that gave it personality was a mistake. I happened to love the idea that the design said absolutely nothing about them, while at the same time, everything." [15](X)

Doug Drexler could not refrain from revisiting his Borg pyramid, when he, under the pseudonym Max Rem, built a CGI model of it for appearance in the 2004 pilot episode "Come What May" of James Cawley's fan made internet series Star Trek: New Voyages; Drexler served as one of the series' producers during its initial run. [16](X)

CGI modelEdit

The model was eventually built at Foundation Imaging by Koji Kuramura, who used the texture maps of the standard Borg cube as a basis, they themselves being mapped from the physical studio model used in First Contact. [17](X) As Kuramura explains, "I started with the base Borg cube model. And added the parts that Doug had on his drawings. I don't know if many people know this, but there was never more than 3 sides built for the Borg cube, because if you think about it... You could never see more than that on screen. The reason being was that it was a very Polygon heavy model. And back in those days of Voyager, memory was at a premium." [18](X) At the time, Drexler was also posted at Foundation as VFX coordinator, so Kuramura was able to confer with him about details while he was building the model, as Drexler recalled, "Koji sits right behind me. As he worked, he'd call me over for a look-see and I'd put in my two-cents' worth. If he needed clarification or more detailed sketched I would kick a few out for him. (...) You'll notice that my sketches are done in rather broad strokes. They're all there in the model. It's crazy to try to spell out all the mega-nooks and hyper-crannies of a Borg contrivance." (Star Trek: The Magazine Volume 1, Issue 18, p. 92)

Conceived well into the CGI age, not a single physical production model was ever constructed for the Borg tactical cube.


Further readingEdit

External linksEdit


  1. Additions of 8 September 2012 to this article on the construction of the original Borg Cube physical models and the persons who build them were updates by original builder Kim Bailey as User:
